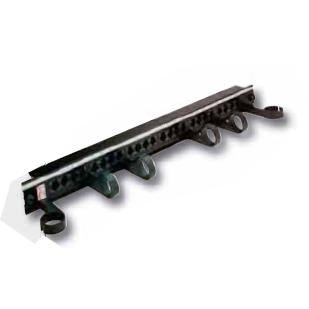

Category 6 high-density patch panels provide the performance needed for present and next generation data communications networks and applications, including Gigabit Ethernet. The high-density format is ideal where cabinet space is at a premium.
They are available in 1u 24 port and 2u 48 port formats and can be customised up to 144 way (6U). Category 6 high-density panels achieve optimum transmission performance by incorporating the highest quality components and innovative on-board compensation techniques. The front of the panel features the same popular labelling method and cable ring slots as the Category 5 Enhanced patch panel. The rear utilises colour coded cable saddles and hook and loop retainers. We also offer Category 6, 16 Way Panels.
All pleach Category 6 high-density panels are fully compliant with the TIA/EIA Category 6 standard. When used in conjunction with Category 6 Modules and UTP cable the user will get a link performance exceeding Category 6 requirements.
Our Category 6 patch panels are identical in appearance to the other panels in the pleach Cabling Systems range making a seamless transition to Category 6 a reality.

Features & Benefits
Category 6 performance
Manufactured in the UK
Unique colour coded saddles allow quick
and easy termination
Accepts pleach Cable Tidy Rings
Top quality high performance
sockets
Individually QA tested
Ordering Information
Product Description Part Number
Category 6 High Density 24 way UTP panel 009-001-004-30
Category 6 High Density 48 way UTP panel 009-001-005-30
Specification
Width 19” (483mm)
Depth 35mm
Height 24 Way 1u (44mm), 48 Way 2u (88mm)
Fixing Centres 467mm
Material Aluminium alloy 6063 HE9/50s to BS1474
Finish Black powder coat to BS6496
Socket Labels 9mm numbered, with acetate cover
IDC Labels Individual colour coded labels to T568B
Cable Guide Individual cable saddles with cable tie
position for left or right cable entry.
Hook and loop cable retention tapes at either end.
Sockets Unshielded vertical jacks
IDC Blocks 4 Way Industry Standard IDC blocks
PCB Groups of 4 identical circuits on 1.6mm
double sided PTH board
Conforms to TIA/EIA-568-B.2-1 Category 6 Specification
